SURFACE MOUNTED SPOTLIGHT
Atom Surface is a surface mounted spotlight with a superior efficiency, precision and a high visual comfort. The Atom family offers a wide variety of mounting options- including track version, low voltage, recessed and surface mounted options. Choose between a fixed or zoom version, 3 different colour temperatures and multiple accessories and create a unique narrow beam spotlight. Atom is for those looking to achieve a precision in the ambient lighting in both commercial and residential applications.
Offering 3 colour temperature options (2700K, 3000K and 4000K) and 12 output options (ranging from 428 Lm to 3373 Lm) and a manual zoom version ( 16°- 47°). Ideal for highlighting artwork in galleries or as retail lighting. Dimming isn’t a problem, with options for DALI dimming and CASAMBI, this attractive recessed spotlight can become a part of the wireless lighting scheme.
Light Source Information
· Surface mounted
· Output: : 11W, 13W, 14W, 15W, 23W, 32W / from 428 Lm to 3373 Lm
· 50,00hrs
· LED Efficiency of 120 lm/W
· Colour Temperature 2700K/ 3000K / 4000K
· CRI 90
· Part L compliant
Design

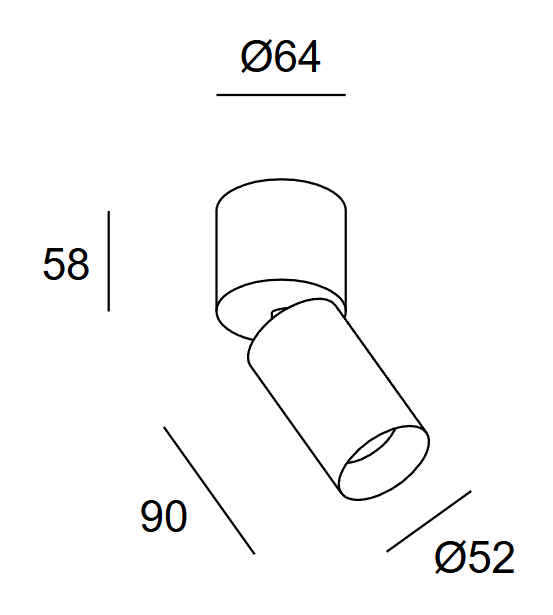

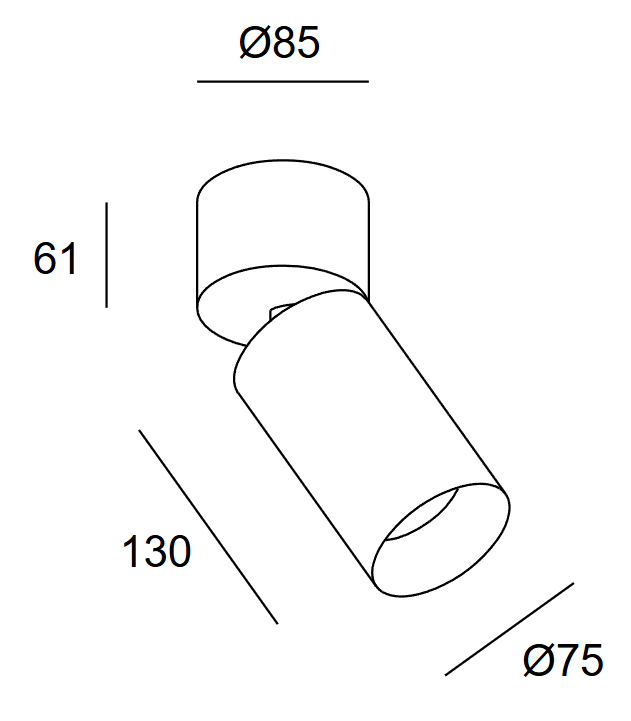

· Diameter: Ø52, Ø75
· Colour finish: Black, White, Gold and combination of these
· Made from aluminum
· IP20
Optics
· Beam Angle: 8°, 22°, 33°, 43° or a zoom version offering 16°- 47°
Dimming
· On-Off
· Phase Cut
· DALI DIM
Integrated Controls (on request)
· Casambi
· Bluetooth
Accessories
· Honeycomb panel
· Elliptical diffuser
· Square diffuser
· Opal diffuser
· Screen
· Visual comfort
Miscellaneous
· 3 Hr Emergency available on request
· 5 years warranty
299 Lighting reserve the right to change the specification of any product without notice or public announcement.
Download Datasheet
LDT Files - Upon Request
Installation Instructions - Upon Request
BIM Files - Upon Request
TM65 Report - Upon request
