Aril Suspended.
The Almost Invisible Line.

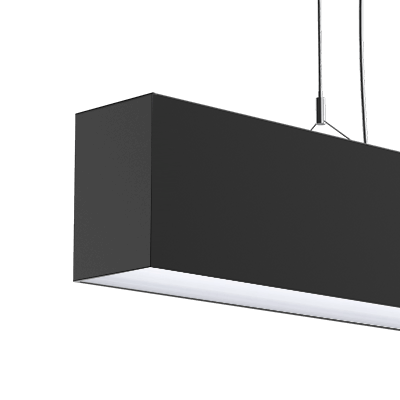

LINEAR PENDANT

Minimalist and classic in design, the Aril is a clean cut linear pendant that can take your interior design to the next level. With the driver included in its slim body, there is no need for remote drivers, making the Aril a perfect linear lighting for spaces with low ceiling void.

The clean aesthetics of the 28mm wide body will enhance any modern space. The highly high level of finish will allow the luminaire to be viewed from any angle, making it a great choice for atriums, viewing galleries and large stair cases.

With 6 different lengths to choose from, the Aril allows for a comprehensive range of applications. Ideal as architectural lighting for breakout spaces, reception areas and public areas.

The Aril can be specified with both CASAMBI and Philips EasyAir to increase user control.

Light Source Information

LED

· Direct and Direct-indirect distribution

· Output from 1140 - to 11670 Lm

· LED Efficiency of 106 Lm/W

· Colour temperature;  3000K, 4000K

· Built-in driver

· CRI >80
· 28mm wide body

Part L compliant

Design

Suspended

· High quality Polycarbonate Opal diffuser

· Black, Silver, White

· Available in standard lengths 847mm, 1127mm, 1408mm, 1688 mm, 1969 mm, 2249 mm

· IP20 rated as standard

Optics

· Opal Diffuser
· Microprismatic Diffuser
· Low UGR Diffuser

Dimming

· Non dimmable

· DALI

Integrated Controls on request

· Casambi

· Philips EasyAir (External EasyAir Sensor)

Miscellaneous

· 3hr Emergency Remote

· 5 year warranty

Download datasheet

LDT Files  - upon request

BIM Files - upon request

Installation Instructions

TM65 Report - upon request
