Nile Surface Mounted
The Playful.

ARCHITECTURAL TUBE LIGHTING

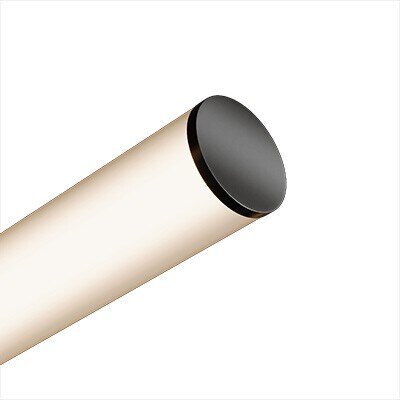

Minimalist and classic in design, the Nile is a clean cut tubular luminaire that can add a personality to your design.

The clean aesthetics and satin diffuser will enhance any modern space allowing the light to add an extra layer of presence in the environment. Install it horizontally or vertically, at an obscure angle, or create a continuous line of light, the choice is yours.

Powered by LED technology, the tubular diffusor distributes soft and uniform light in an omni-directional style for a comfortable level of illumination whilst keeping the energy consumption in check. With 7 different lengths to choose from, the Nile allows for a comprehensive range of applications. Ideal as a creative feature luminaire for breakout spaces, reception areas and public areas.

The NILE can be specified with both CASAMBI and Philips EasyAir to increase user control.

Light Source Information

. LED
· Direct and Direct-indirect distribution (260°)
· Output from 4138 - to 8276 Lm
· LED Efficiency of 133 Lm/W
. Power 22W/m
. Colour temperature; 2700K, 3000K, 4000K, 5000K
. Built-in driver

. CRI >80, >90, >95

•
  Part L compliant

Design

• Suspended, Surface mounted
  · High quality Polycarbonate Opal diffuser
  · End cups and matching cables in 4 colours- white, black, red, yellow

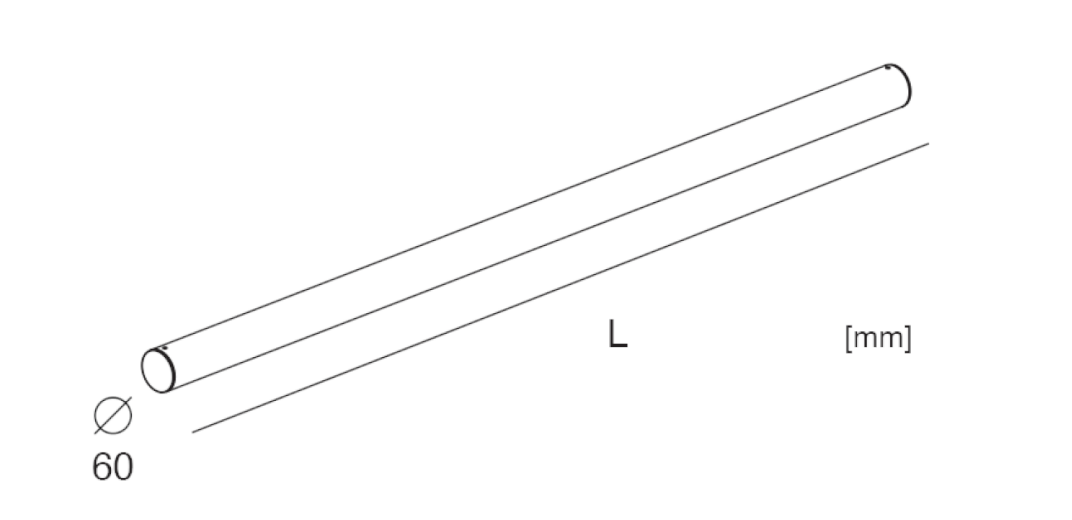

  · Available in standard lengths 1408mm, 1478mm, 1548mm, 1618mm, +70mm increments all the way to 2806mm maximum
  · IP20 rated as standard, IK02 rated

Optics

• Opal Diffuser

Dimming

• Non-dimmable
  · DALI

Integrated Controls (on request)

• Casambi
  · Philips EasyAir (External EasyAir Sensor)

Installation

Miscellaneous

• 3hr Emergency not available
  · 2 year warranty

Download datasheet

Download LDT Files

Download BIM Files

Installation Instructions

TM65 Report - upon request
