Sett Suspended

THE BACKSTAGE HERO

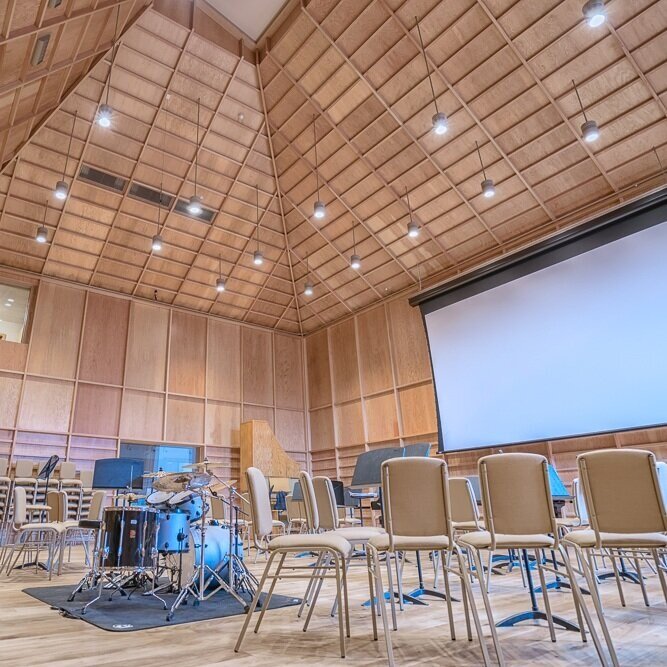

Sett Suspended offers a contemporary alternative to downlights in exposed ceilings. Proportionately designed with visible heat sink and screws blending in, the Sett has a strong industrial look and feel. Used in corridors, hallways and circulation areas, this suspended downlight is a bold design solution for projects with high ceilings.

Available in 3 different outputs, the Sett Suspended is suitable for most commercial applications with standard ceilings to double or triple-height atrium spaces. The fitting is supplied with a minimalist looking suspension kit of 1500 mm as standard, but can be specified with a metal rod, too.

The Sett Suspended is available in 3 standard colours or 'stand out from the crowd' and choose any RAL colour to match your design scheme. Sett is ideal for all those important backroom parts of your scheme or hard working environments like airports, where reliability is the key.

Simple installation is an advantage when on site and Sett offers just that. 

The SETT can be specified with both CASAMBI and Philips EasyAir to increase user control.

Light Source Information

· Suspended
· Output: 12W - 1100Lm / 20W - 2000Lm / 31W - 3200Lm
· 50,00hrs, L80 B20
· LED Efficiency of 97 lm/W
· Colour Temperature 3000K / 4000K
· 3 MacAdam

· Part L compliant

Design
· Diameter Ø170
· Standard Body Finish White, Black and Grey
· Made from steel and aluminium
· IP20 in standard, IP44 on request

Optics
· Clear or frosted glass on request

Dimming
· DALI DIM are available on request

Controls (on request)

· Casambi
· Philips EasyAir

Installation

· Installation Instruction available on request

Miscellaneous
· 3H Emergency available on request
· 2 years warranty

Download datasheet

Download LDT Files

Download Installation Instructions

BIM Files - upon request

TM65 Report - upon request

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/sett-suspended-white-downlight.jpeg

Versatility

To give the user more freedom, Sett can be specified as Dali dimmable. It also offers emergency integration and is available with an IP44 rating (on request).

For some applications, movement detection is vital in order to save on energy consumption and keep the operating cost down. Sett can be equipped with a microwave sensor.

https://f.hubspotusercontent-eu1.net/hubfs/24970484/products/CardiffAirport2CCardiff-04-lq.jpg

Industrial look

Industrial, yet contemporary, the SETT offers a bold design option to all the important backroom areas in the workplace.

Sett is also available as surface mounted option, which is a perfect lighting solution for areas with restricted access or low ceiling voids.

Wireless Control

All mounting styles of Sett can be easily upgraded with Casambi or Philips EasyAir controls, allowing faster and easier installation and commissioning. Putting the user in charge, wireless controls are a serious proposition for workplace future-proofing with increased energy saving and wellbeing.
