Segura Recessed Trimless
Go Large or Go Home.

LARGE TRIMLESS DOWNLIGHT

Minimalist and bold at the same time, the circular recessed luminaire Segura celebrates the pure geometry. The clean aesthetics of this architectural luminaire will enhance any commercial interior. When used as a trimless option, the Segura blends seamlessly into your crisp white ceilings, becoming a subtle yet sophisticated feature. For a more bold design, the six different sizes could be mixed and matched.

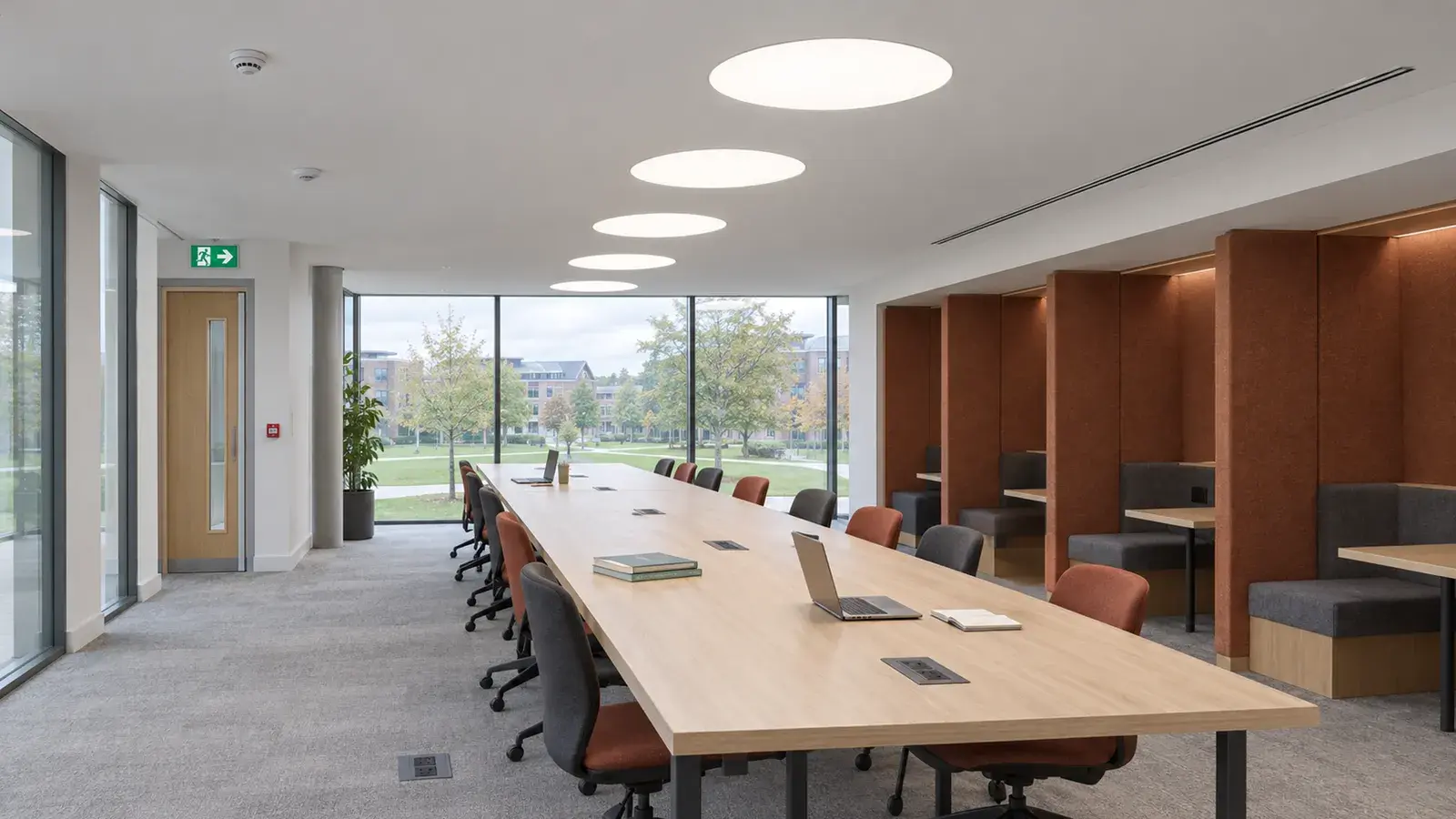

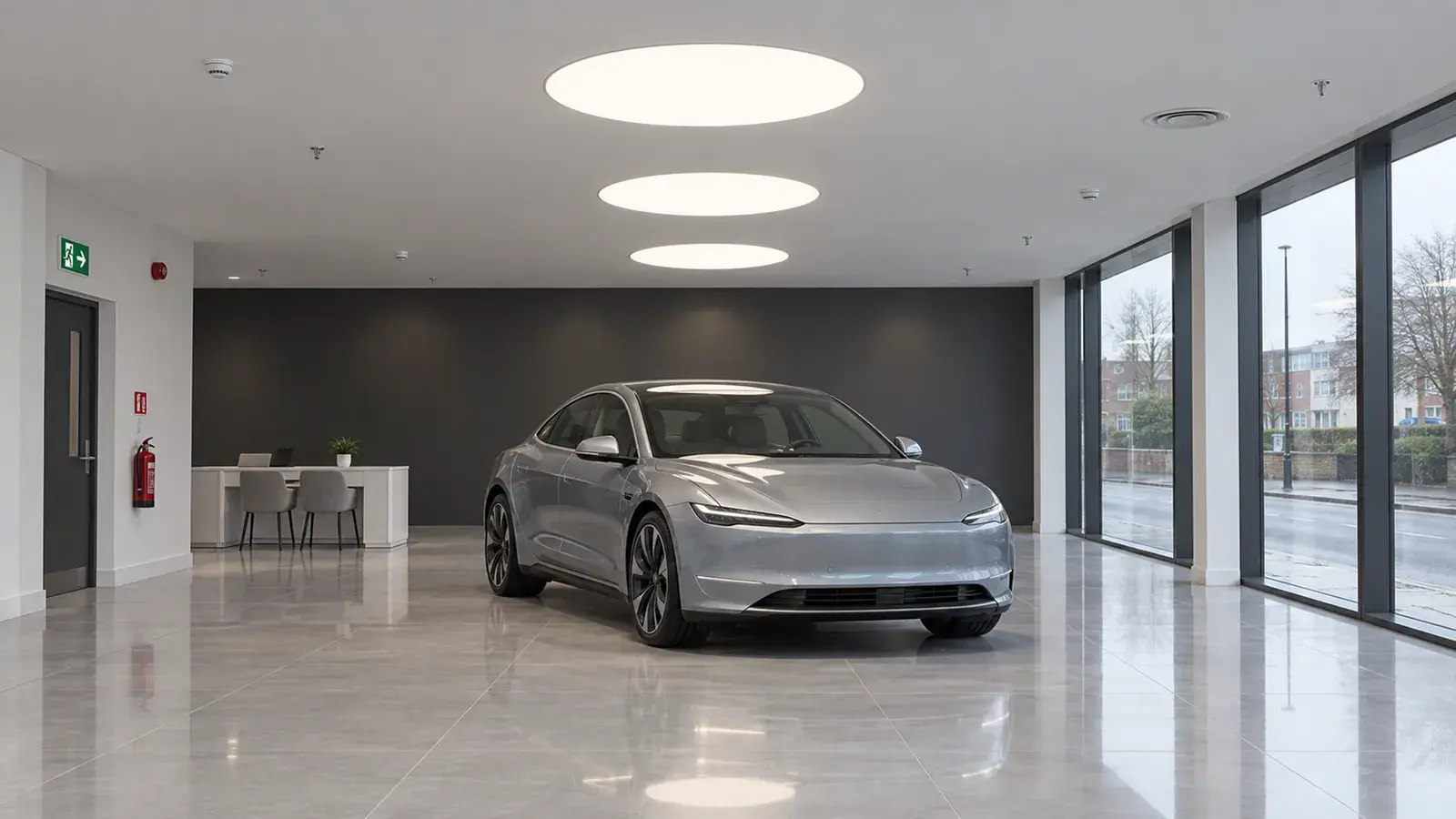

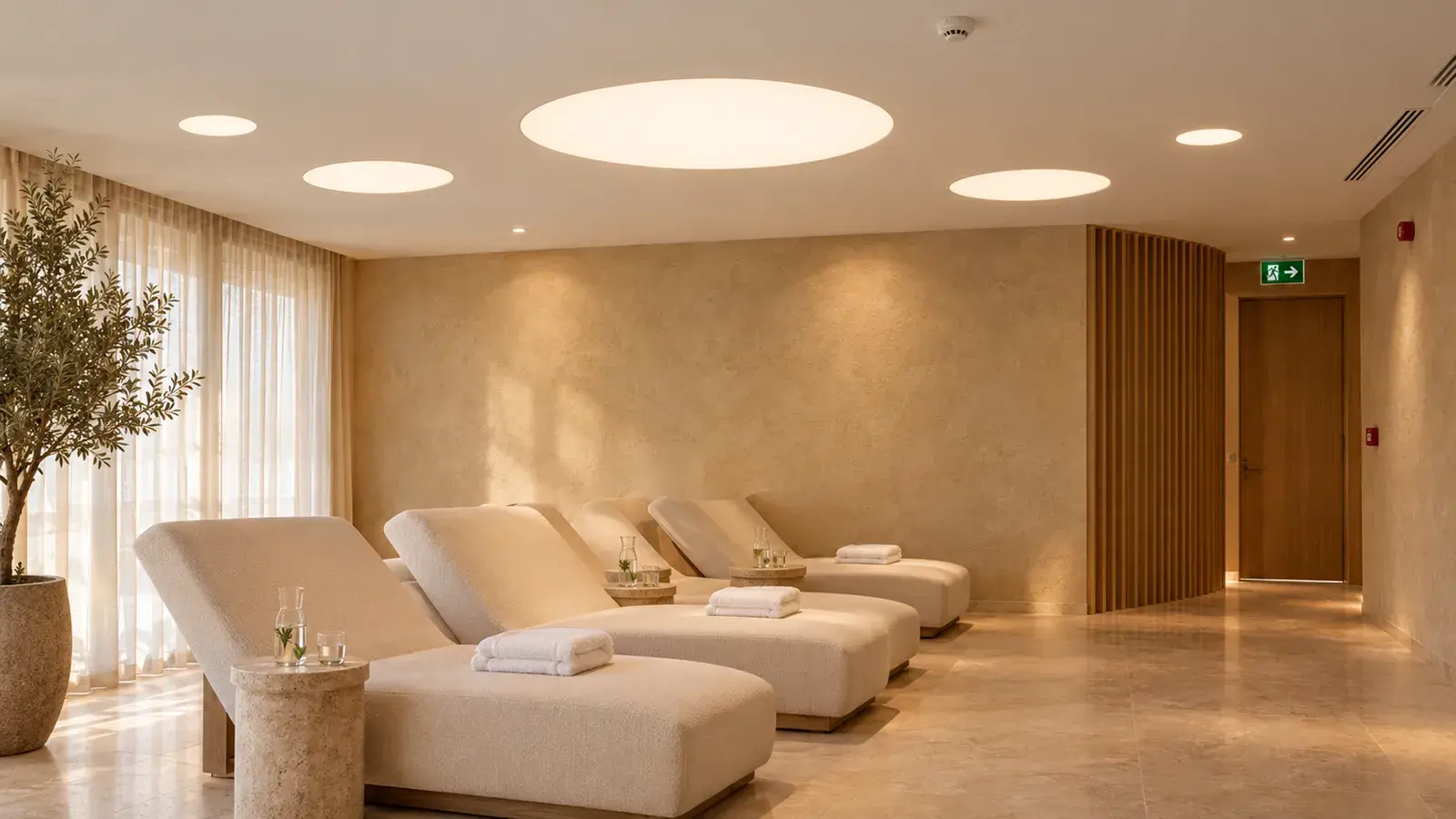

The choice is yours. Equipped with either opal or microprismatic diffuser, the trimless downlight Segura produces a pleasant uniformly distributed output of light. Popular with architects and designers, the Segura can be used throughout the entire project, or as feature lighting. Ideal for breakout spaces, reception areas, galleries, offices and retail environments.

The SEGURA can be specified with CASAMBI to increase user control.

Light Source Information

· LED
· Direct Only
· LED outputs available from 15W / 1050 lm up to 198W / 22220 lm · 3- Step MacAdam ellipse · CRI80 · Efficiency of up to 117 lm/W · Colour Temperature 3000K | 4000K
· Internal Drivers supplied
· L80B20, Life-time of 50,000 hrs

· Part L compliant

Design

· Ceiling recessed with trimless
· IP20 rated

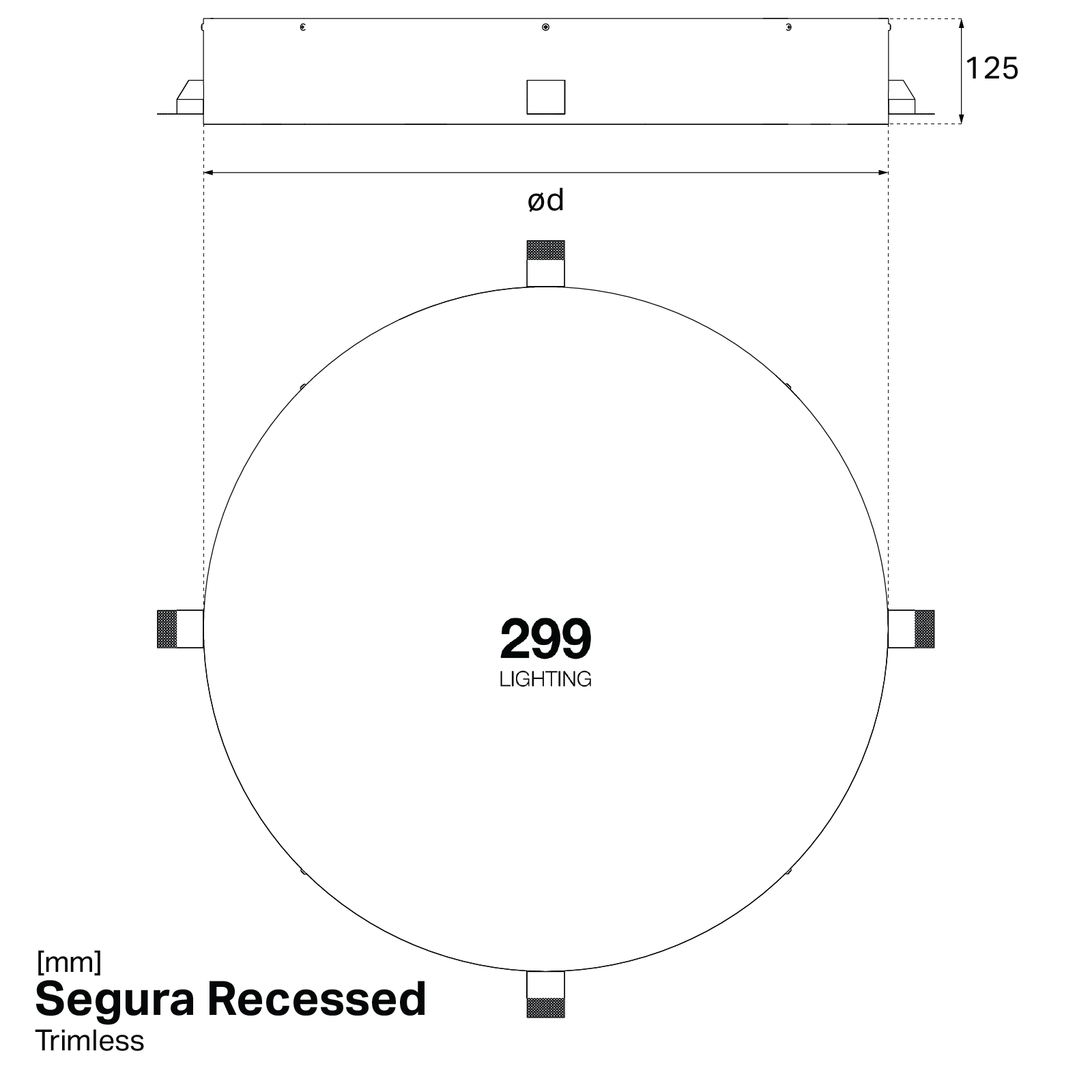

· Available in 6 standard sizes from 236 mm to 1203 mm

Optics

· Opal Diffuser
· Microprismatic Diffuser

Dimming

· Non-dimmable as standard
· DALI available on request

Integrated Controls (on request)

· CASAMBI

Installation

· For recessing only, cut specified size from plasterboard. Place unit into ceiling, allow 140mm min. recess cavity. Screw brackets to rotate them into place, securing luminaire in place

Miscellaneous

· 3hr Emergency available on request
· 2 year warranty

Download datasheet

Download LDT Files

Download Installation Instructions

BIM Files - upon request

TM65 Report - upon request
