MINI DOWNLIGHTS
The micro linear lens system BENTO is a family of mini downlights designed specifically to avoid glare. The Bento family offers a wide variety of mounting options- including track version, low voltage, recessed and surface mounted options. Choose between a fixed or zoom version, 3 different colour temperatures and multiple accessories and create a unique narrow beam spotlight. Atom is for those looking to achieve a precision in the ambient lighting in both commercial and residential applications.
Offering 3 colour temperature options (2700K, 3000K and 4000K) and 12 output options (ranging from 428 Lm to 3373 Lm) and a manual zoom version ( 16°- 47°). Ideal for highlighting artwork in galleries or as retail lighting. Dimming isn’t a problem, with options for DALI dimming and CASAMBI, this attractive recessed spotlight can become a part of the wireless lighting scheme.
Standard, adjustable, Ip54 and wall washer
Light Source Information
· Recessed, surface
· Standard; 3, 6, 12 and 18 LED modules, 9 modules for the square version
· Output: 6W, 12W, 24W, 36W / from 560 Lm to 4161 Lm
· 50,00hrs
· LED Efficiency of 120 lm/W
· Colour Temperature 2700K/ 3000K / 4000K. Tunable White on request
· CRI 90
· Part L compliant
Design
· Size: Standard:
3 modules: 40 x 94 mm trim, 40 x 88 mm trimless
6 modules: 46 x 173 mm trim, 40 x 168 mm trimless
12 modules: 46 x 332 mm trim, 40 x 327 mm trimless
18 modules: 46 x 491 mm, 40 x 486 mm trimless

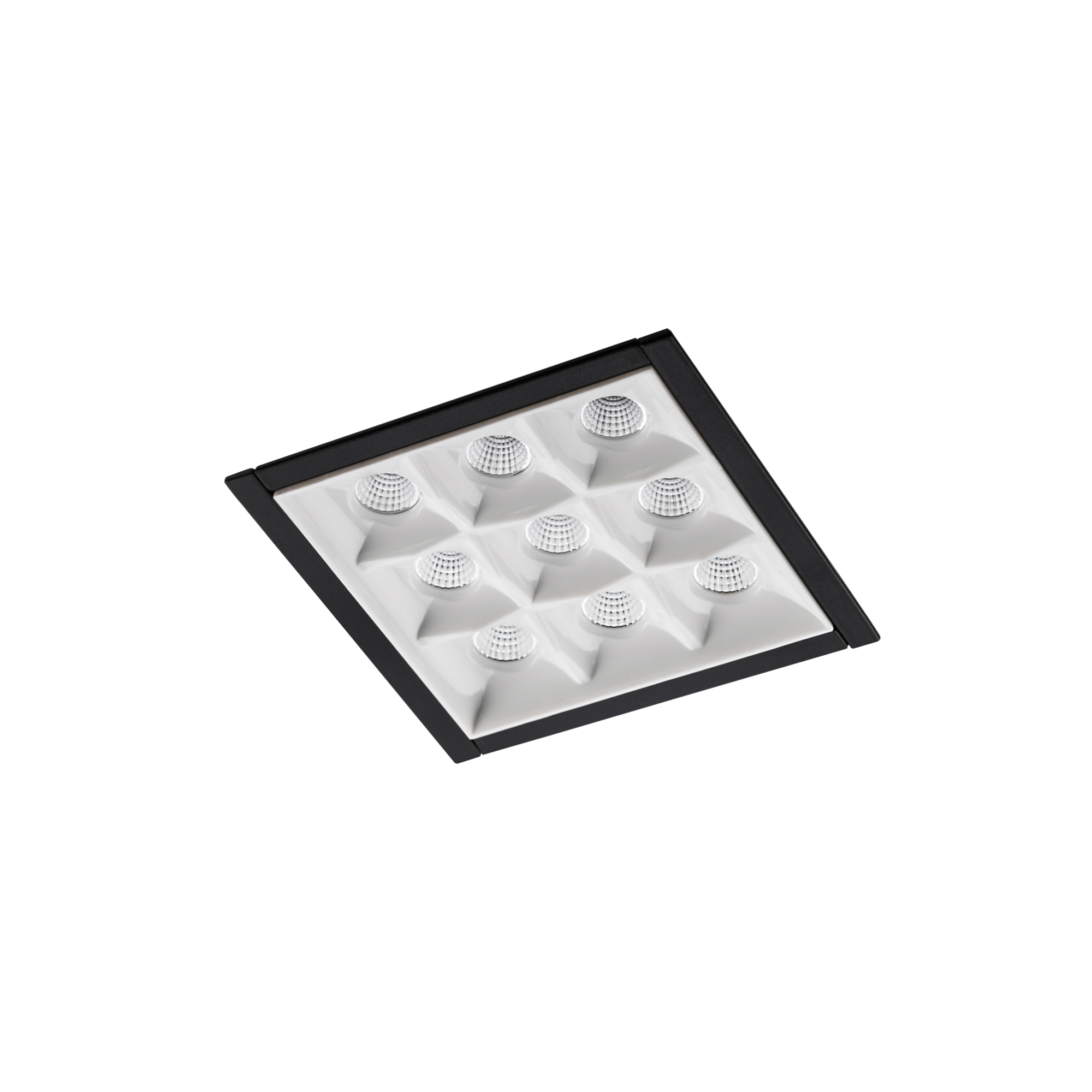

9 modules Bento Square trim: 100 x 100 mm, 94 x 94 mm trimless
· Size: Adjustable:
3 modules: 80 x 106 mm
6 modules: 80 x 186 mm
·Size: IP65 version:
3 modules: 69 x 117 mm
6 modules: 69 x 197 mm
· Size: Wall washer:
3 modules: 86x 39 mm, 115 x 28 mm
6 modules: 153 x 39 mm, 83 x 28 mm
12 modules: 286 x 39 mm, 318 x 28 mm
· Colour finish: Black, White
· Made from aluminum
· IP23 and IP65
Optics
· Beam Angle: 17° / 38°/ 47°
Dimming
· On-Off
· Phase Cut
· DALI DIM
Integrated Controls (on request)
· Casambi
· Bluetooth
Miscellaneous
· 3 Hr Emergency available on request
· 5 years warranty
299 Lighting reserve the right to change the specification of any product without notice or public announcement.
Data Sheet - Recessed
Datasheet -Surface
Datasheet - Wallwasher
LDT Files - Upon Request
Installation Instructions - Upon Request
BIM Files - Upon Request
TM65 Report - Upon request
